Product Description:

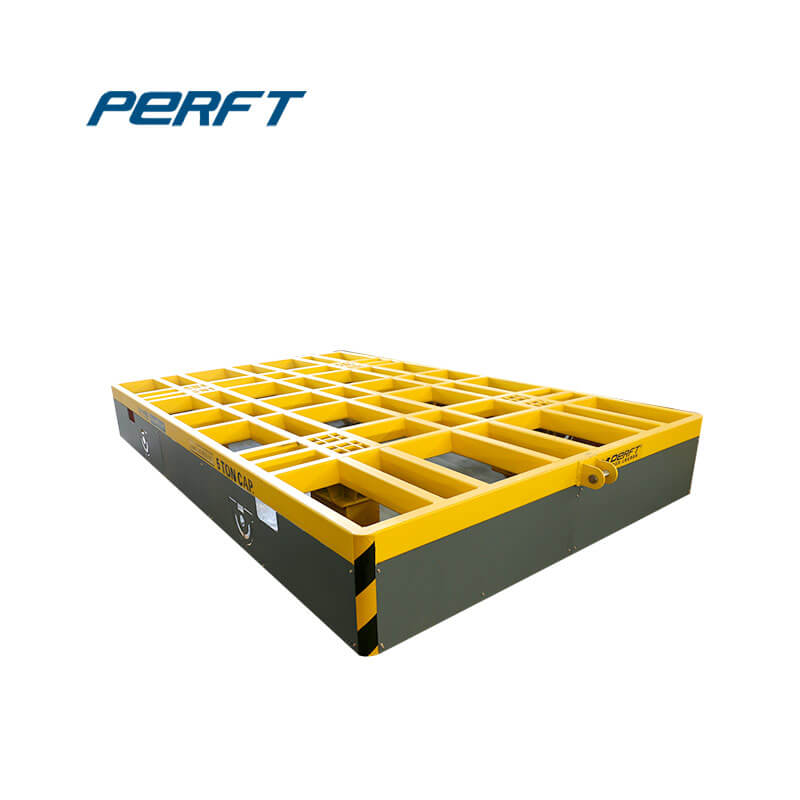

Double axle steering factory utility trailer cement floor operation is also called non-powered Double axle steering factory utility trailer cement floor operation. It needs to be towed by other motorized equipment, such as tractors, locomotives, forklifts, and tractors of the same force. Now, this kind of industrial flatbed trailer has been widely used in material transportation in various fields: airports, seaports, warehouses, factories, railway stations, etc. In order to maintain stability and flexibility during the rollover process, especially in small spaces, our engineers optimized the steering mechanism. At the same time, the rigidity of the wheel press and the frame has been reasonably designed and can be used for linkage of multiple trailers. After years of hard work, our material handling equipment has been highly recognized by customers.
Application
Our steering factory utility trailer can be used on a construction site to transfer heavy concrete castings. For construction sites, the trailers often need off-road towing capacity which means we need to focus on the issue of working in muddy off-road conditions. For good performance ability, we have installed the damping device on the trails.
Shipping Containers Moving：
This kind of steering factory utility trailer can move the shipping containers around at a maintenance terminal. The extended tongue allowed oversize containers to overhang the frame giving the customer flexibility to haul different size containers. Many other job sites: airport, warehouse, logistics, workshop, forestry center, etc.
Parameters
| Table Size(mm) | 2000*1500 | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height of Trailer (mm) | 500 | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| Tire Specification | 254*102 | 305*165 | 559*254
|
559*356 | 22*9-10
|
22*9-10
|
22*10-16
|
22*14-16
|
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire
|
|||||||
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized | |||||||
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
