Product Description:

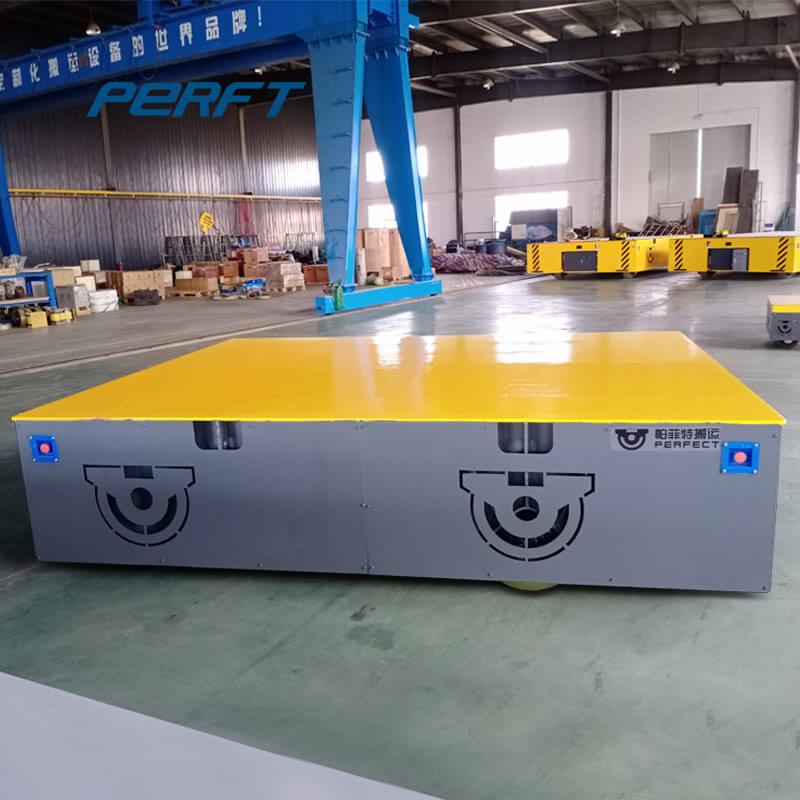

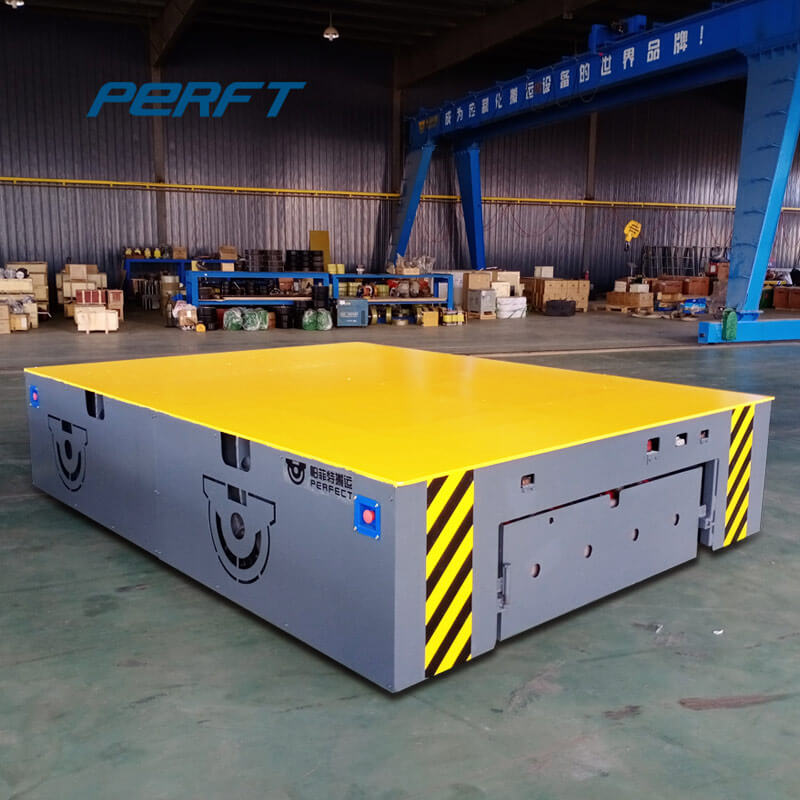

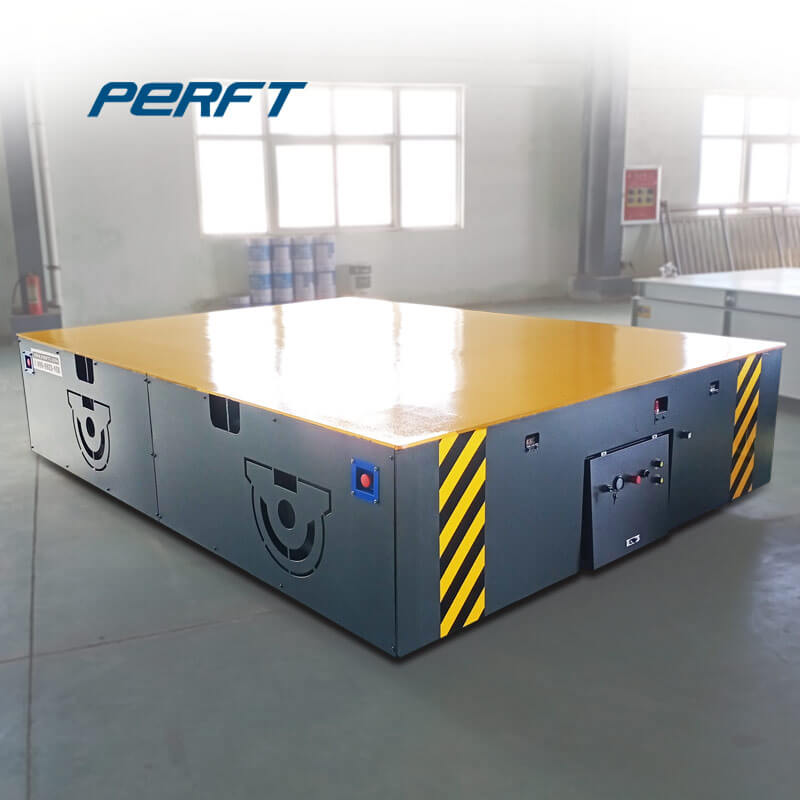

Steerable electric trackless transfer vehicle industrial tugger carts are used to move molds, coils or materials between the press room and the mold storage and maintenance area. The advantage of this kind of Steerable electric trackless transfer vehicle industrial tugger carts is that the entire length of the manufacturing facility can be moved, where the mold moved by the crane is limited by the travel distance of the crane, or must be transferred from the crane bracket to the crane bracket. Our standard heavy-duty design is controlled by a handheld button controller with a small turning radius.
APPLICATION:
The trackless tugger carts can be used for coil items, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mold, beam, container, heavy equipment, aluminum product, compressor, polycrystalline silicon, motor, building materials, scrap, pallet and other material transport in the factory.
| Mold | 5T | 10T | 15T | 20T | 30T | |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | |
| Height(mm) | 600 | 700 | 750 | 750 | 800 | |
| Wheel Quantity | 4 | 6 | 8 | 8 | 12 | |
| On cement floor | Tire Specification | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire, Air Tire | |||||
| On rail | Rail Inner Gauge(mm) | 1200 | 1435 | |||
| Wheel Material | LD steel wheel, Angel box wheel | |||||
| Frame Material | Q235 | Q345 | ||||
| Color | Customized | |||||
| Speed(km/h) | 0-20 | 0-15 | ||||
